Instrustion:

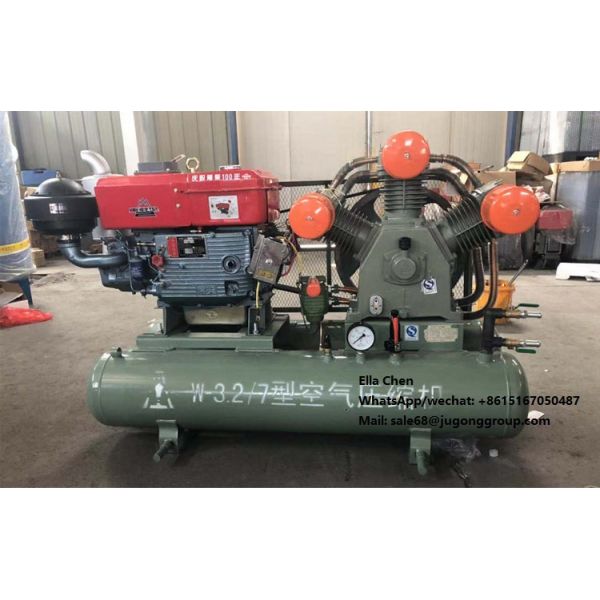

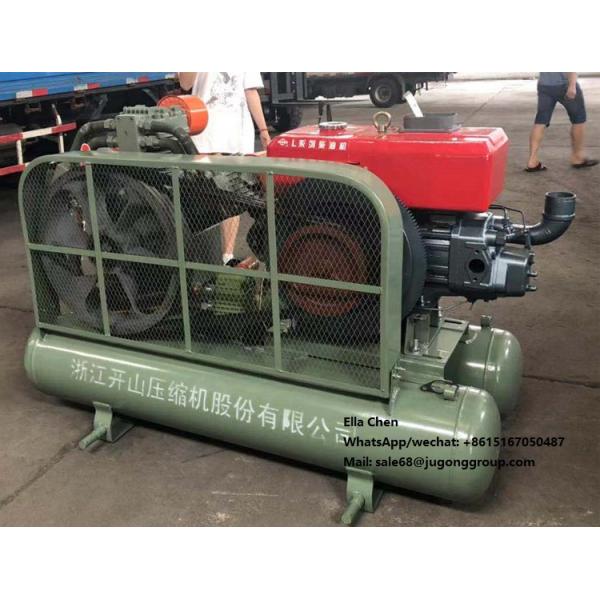

Portable Air Compressor Price With Jack Hammer For Mining Used W-3.2/7 is very high efficiency: the higher the pressure,the more it will cost.The pneumatic tools and sparaying equipment can ben used in digging tunnel under the pit often confront the problem of low efficiency of compressed air provided because the pressure decreases for the long pipeline.
| Diesel Portable Piston type Air Compressor related model |
| Model | Power(kW) | Capacitym3/min) | Working presure(Mpa) | Dimension |
| W-1.8/5-D | 11 | 1.8 | 0.5 | 1700×710×1000 |
| W-1.8/5 | S1100 | 1.8 | 0.5 | 1700×710×1000 |
| W-2/5-D | 11 | 2 | 0.5 | 1700×810×1050 |
| W-2/5 | S1100 | 2 | 0.5 | 1700×810×1050 |
| W-2.6/5-D | 15 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.6/5 | S1110 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.8/5-D | 15 | 2.8 | 0.5 | 1780×870×1235 |
| W-2.8/5 | S1110 | 2.8 | 0.5 | 1780×870×1235 |
| W-3/5-D | 18.5 | 3 | 0.5 | 1800×900×1300 |
| W-3/5 | S1115 | 3 | 0.5 | 1800×900×1300 |
| 2V-3.5/5-D | 18.5 | 3.5 | 0.5 | 1800×950×1300 |
| 2V-3.5/5 | S1125 | 3.5 | 0.5 | 1800×950×1300 |
| 2V-4/5-D | 18.5 | 4 | 0.5 | 1800×950×1300 |
| 2V-4/5 | S1125 | 4 | 0.5 | 1800×950×1300 |
| W-1.8/7-D | 11 | 1.8 | 0.7 | 1100×820×1100 |
| W-1.8/7 | S1100 | 1.8 | 0.7 | 1100×820×1100 |
| W-2.6/7-D | 15 | 2.6 | 0.7 | 1800×870×1235 |
| W-2.6/7 | S1115 | 2.6 | 0.7 | 1800×870×1235 |
| W-3.2/7-D | 18.5 | 3.2 | 0.7 | 1920×960×1350 |
| W-3.2/7 | S1125 | 3.2 | 0.7 | 1920×960×1350 |
***Model with "D" is mean this is electric type, or is diesel engine.
Undergo more than ten years continuous technology innovation, the Kaishan Group has became one of the most professional manufacturers in the mining and industrial air compressor industry.
Air delivery is from 1.0m3 to 26.0 m3, pressure is from 5Mpa to 10 Mpa, immovable model, movable model, air cooling model, water cooling model, diesel engine model, motor model for you to chose, there are more than 100 types of air compressor.
More than ten years good market sales record shows that the ‘’Kaishan’’ brand product has best quality and superior performance and it enjoys high reputation in the market.
Valve plate and spring strip: made of special steel from Sweden and after special treatment; high efficient and reliable.
Piston ring: special design; integral casting; excellent flexibility; lowest lubricating oil condition.
Cylinder: made of boron cast iron; wear resistant; special suitable for dusty condition.
Cylinder cover: extrusion process adopted; streamlined external appearance; good heat emission performance.
Crankshaft: made from ductile cast iron; rare magnesium alloy after heat treatment and surface quenching; excellent performance.
Simple structure, light weight, easy to move
Easy operating and maintenance
Energy saving low cost
